[Manfrotto] Light Stand Dock TRIPLE (M-LSD-1 TRIPLE)

● Precautions before purchasing

This product is made of 3D -printed resin, not metal. If you are expecting a metal-like strength, please refrain from purchasing.

3D -printed ones have laminated marks and burrs, and may cause thin scratches in the manufacturing process.
Normally, 3D -printed products are less likely to be cleaner like a resin product made in the mold.
The strength of the product has been confirmed in normal use, but do not use or make a mistake in the extreme burden.

Only those who understand the 3D -printed products or handmade products as described above should order.


● Product explanation

This is a combo that can hold three Aluminium light stands.

https://www.instagram.com/reel/DCBiykuvplg/?igsh=ZTF4NGozYnhpeWl0

https://www.instagram.com/reel/DCJRNH_PO_I/?igsh=MWhrNmU4MHQ3bTJ6bg==

Designed the dock based on Manfrotto 004JB Light Stand that was mainstream in Japan.

◆◆◆Stands with confirmed installation◆◆◆
Manfrotto Combi-boom stand Black Aluminium 420B
https://www.manfrotto.com/us-en/combi-boom-stand-black-aluminium-with-sandbag-420b/
Manfrotto Combi-boom stand Black Aluminium 420JB
Manfrotto 004B Light Stand
Manfrotto 004JB Light Stand
NEEWER 400cm Aluminum Alloy Photography Light Stand
https://jp.neewer.com/collections/light-stands/products/neewer-heavy-duty-light-stand-13-feet-4-meters-66600095

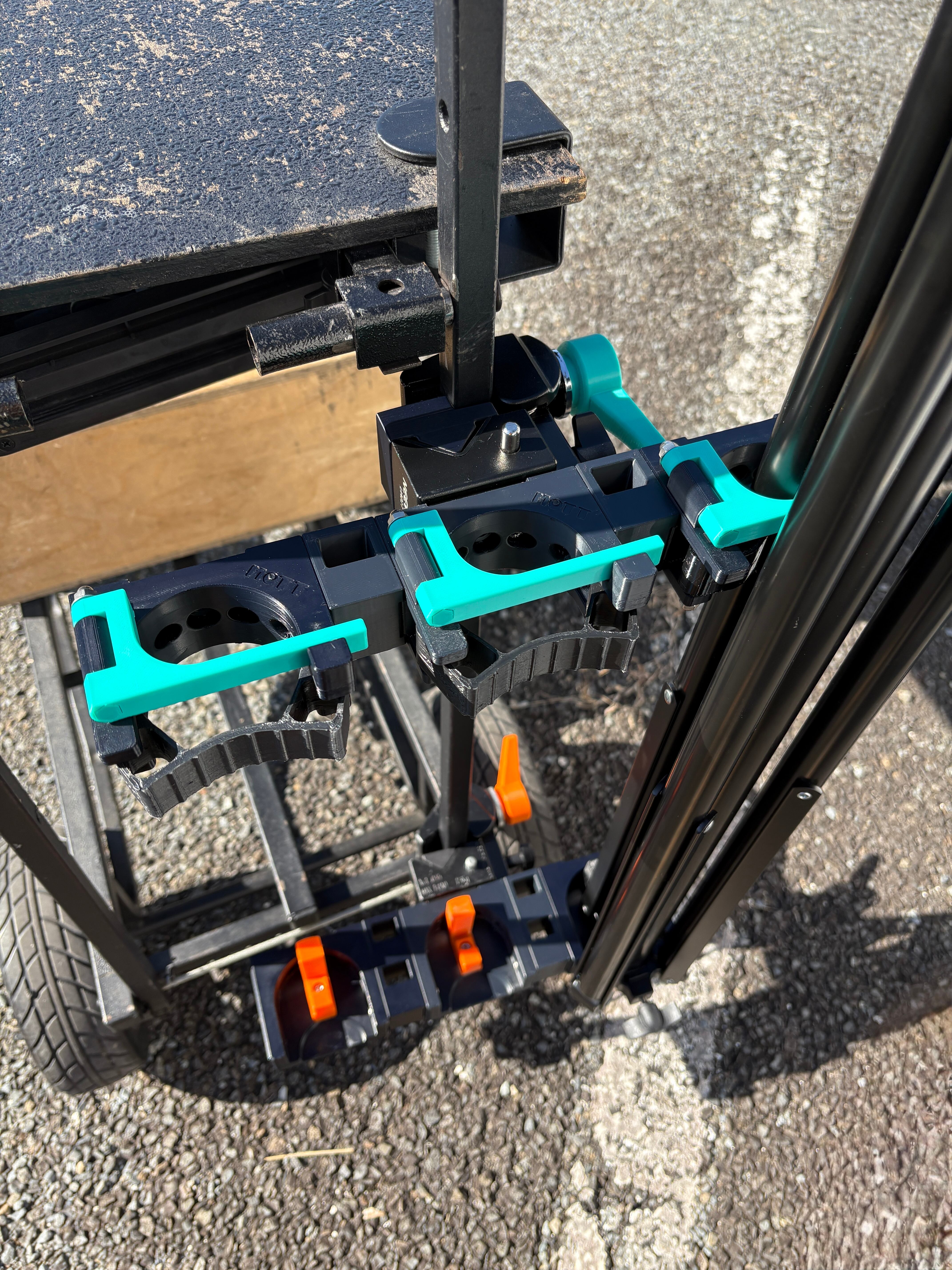

It is an Aluminum light stand dock that can be fixed with a super clamp. It is possible to connect to the side and install light stands side by side.
Basically to hold one light stand, you need a light stand dock and two super clamps. But this Light Stand Dock TRIPLE can hold three Aluminium light stands with two super clamps.


[upper “grip” ]
Fix one of the three legs

Super clamps can be fixed not only in the horizontal but also vertically.
If you fix it horizontal, you can fix it with one 1/4 inch screw and two M5 bolts.
If you fix it vertically, remove the non-slip rubber like sheet and you can fix it with one 1/4 inch screw.

In addition, it is possible to connect to the side with one M5 bolt, and by inserting a spacer, it is possible to prevent the next grip from interfering.

[lower “base”]
Secure the bottom of the light stand

It is recommended that the base of the bottom should be tightened with three screws(one 1/4 inch screw and two M5 bolts).
Do not fix it with only one or two screws and bolts.

The whole material uses weather resistance and durable ASA, and the grip uses high-quality and durable TPE.
It is currently difficult to obtain ASA materials in a stable manner, and since the filament manufacturers available vary depending on the production period, the way black materials look slightly different.


●Package contents (The first photo is the content)

＊ Super clamps are not included

3- upper “grip” with black clamp and Turquoise green safety lock

　Please check the diameter of your stand before purchasing.
Fix one of the three legs rather than the support.
This grip can hold a stands with a diameter of approximately 22-25mm.


3- lower “base” for Aluminum light stands

6- rubber-like square spacers

1- screw and bolt pack
(x6) stainless steel 1/4-20 screws
(x12) stainless steel M5-15mm bolts

1 - Spacer pack for LSD-1
(x2) 30mm spacers for upper “grip”
(x2) 30mm spacers for lower “base”
(x6) M5-40mm stainless steel bolts
