Upper “grip” for Super Clamps （UG-1) ABS CF

● Precautions before purchasing

This product is made of 3D -printed resin, not metal. If you are expecting a metal -like strength, please refrain from purchasing.

3D -printed ones have laminated marks and burrs, and may cause thin scratches in the manufacturing process. Normally, 3D -printed products are less likely to be cleaner like a resin product made in the mold. The strength of the product has been confirmed in normal use, but do not use or make a mistake in the extreme burden.

Only those who understand the 3D -printed products or handmade products as described above should order.



● Product explanation

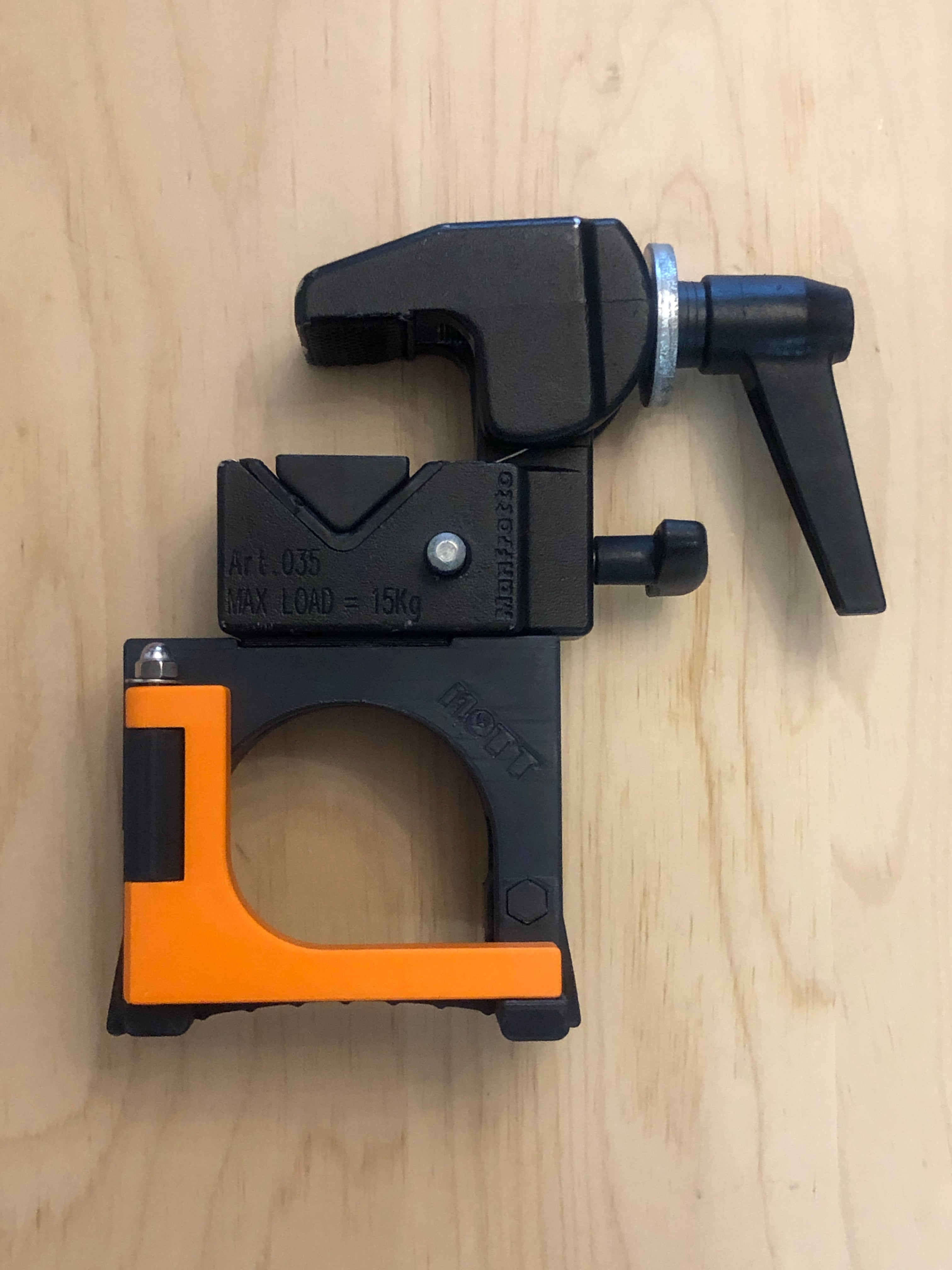

It is a upper “grip” that can be fixed with a super clamp for booms and C-stands.

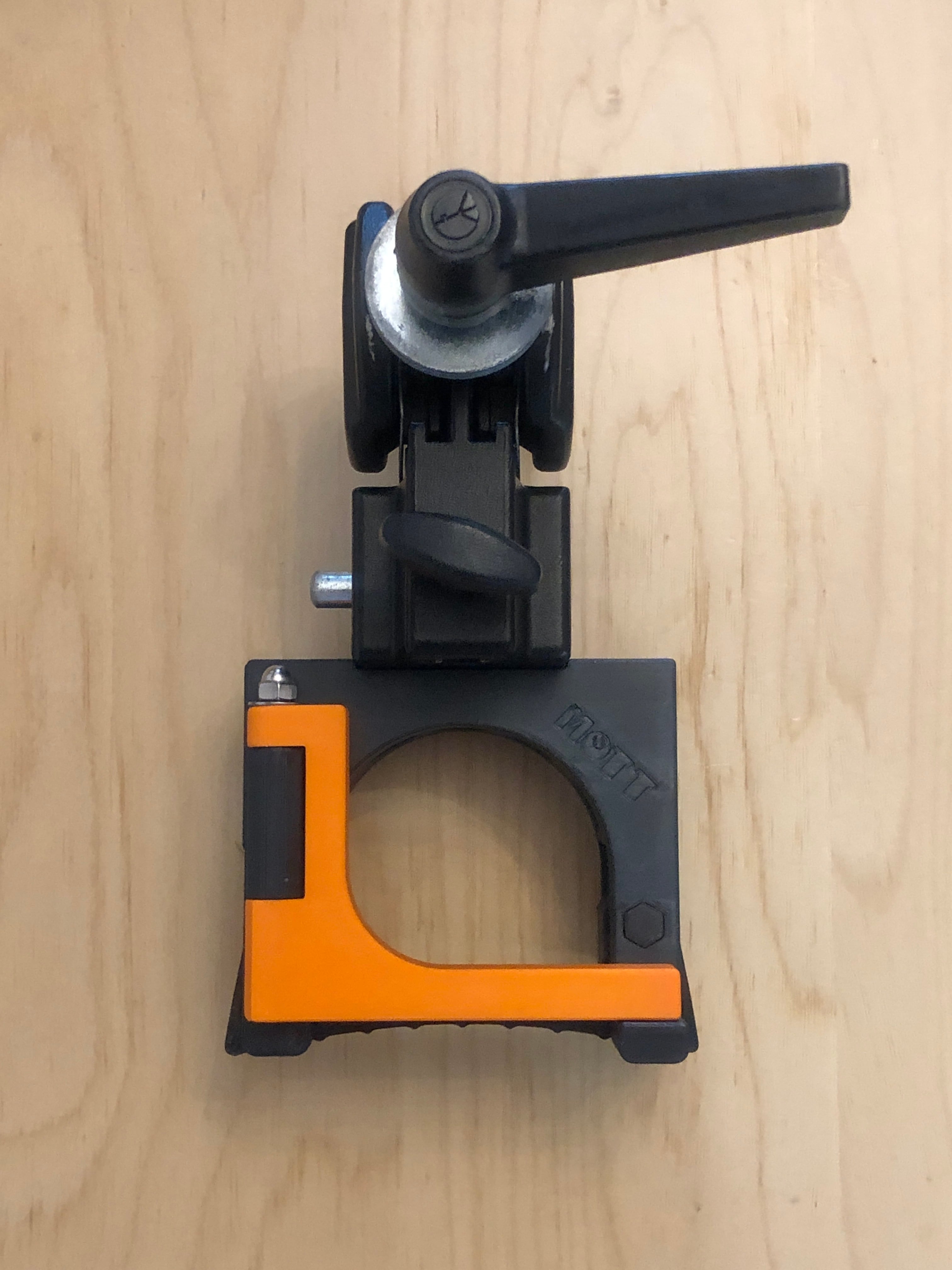

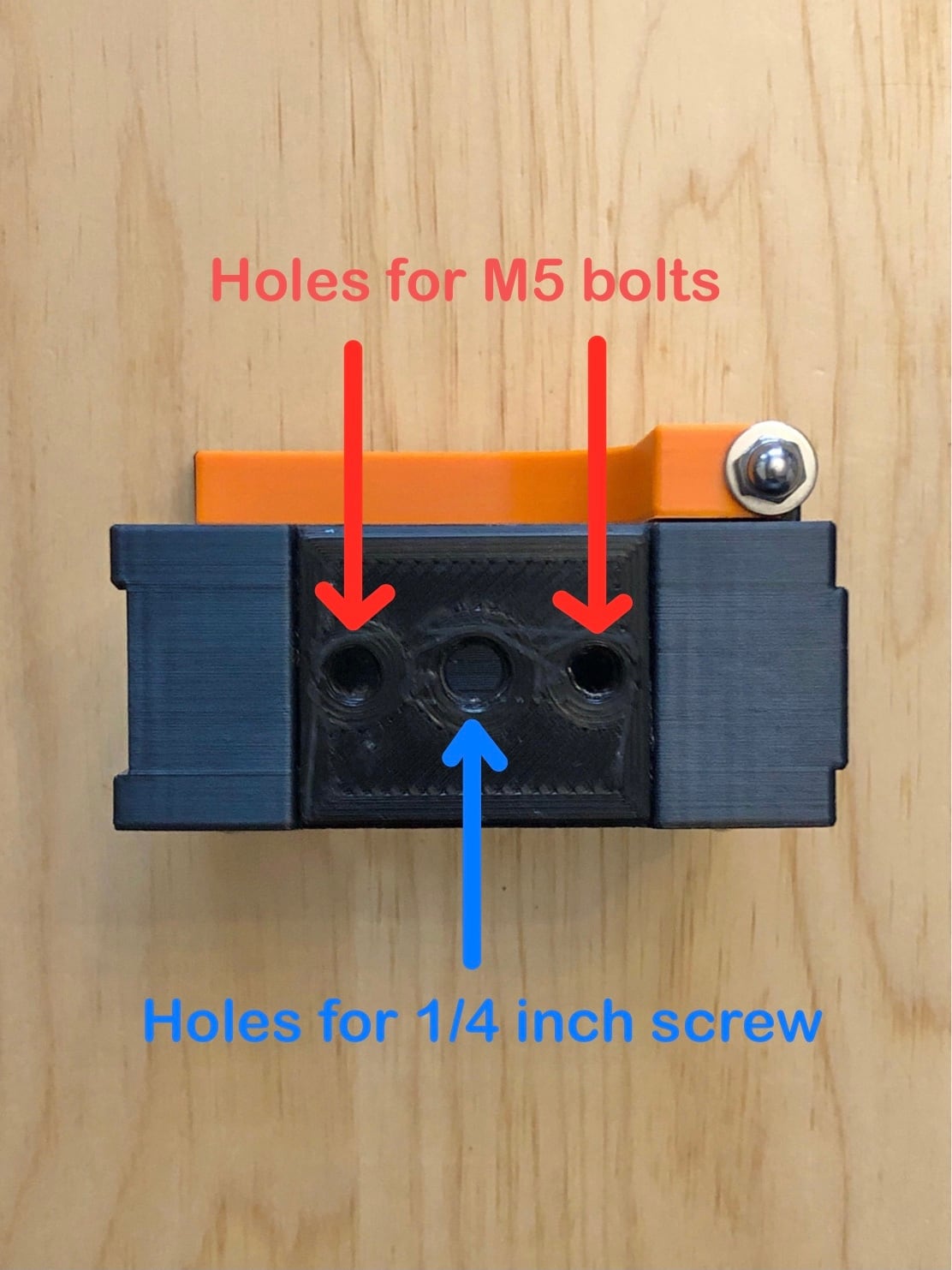

Super clamps can be fixed not only in the horizontal but also vertically. If you fix it horizontal, you can fix it with two M5 bolts and one 1/4 inch screw. If you fix it vertically, remove the non -slip rubber like sheet and you can fix it with one 1/4 inch screw.

https://www.instagram.com/reel/C94U2EevdWI/?igsh=MWQ0bG9jNTlidHpzYw==

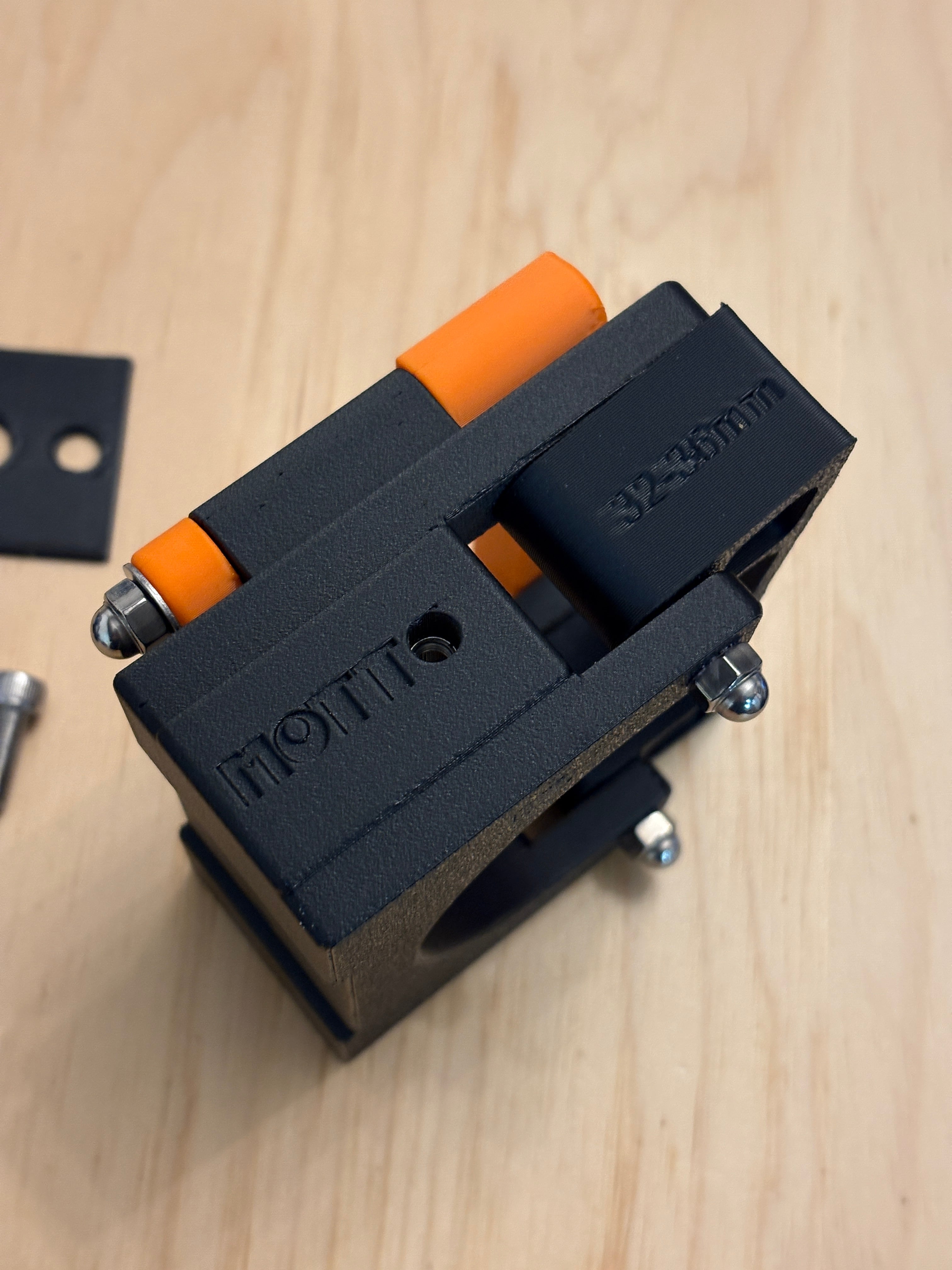

In addition, it is possible to connect to the side with one M5 bolt, and by inserting a spacer, it is possible to prevent the next grip from interfering.

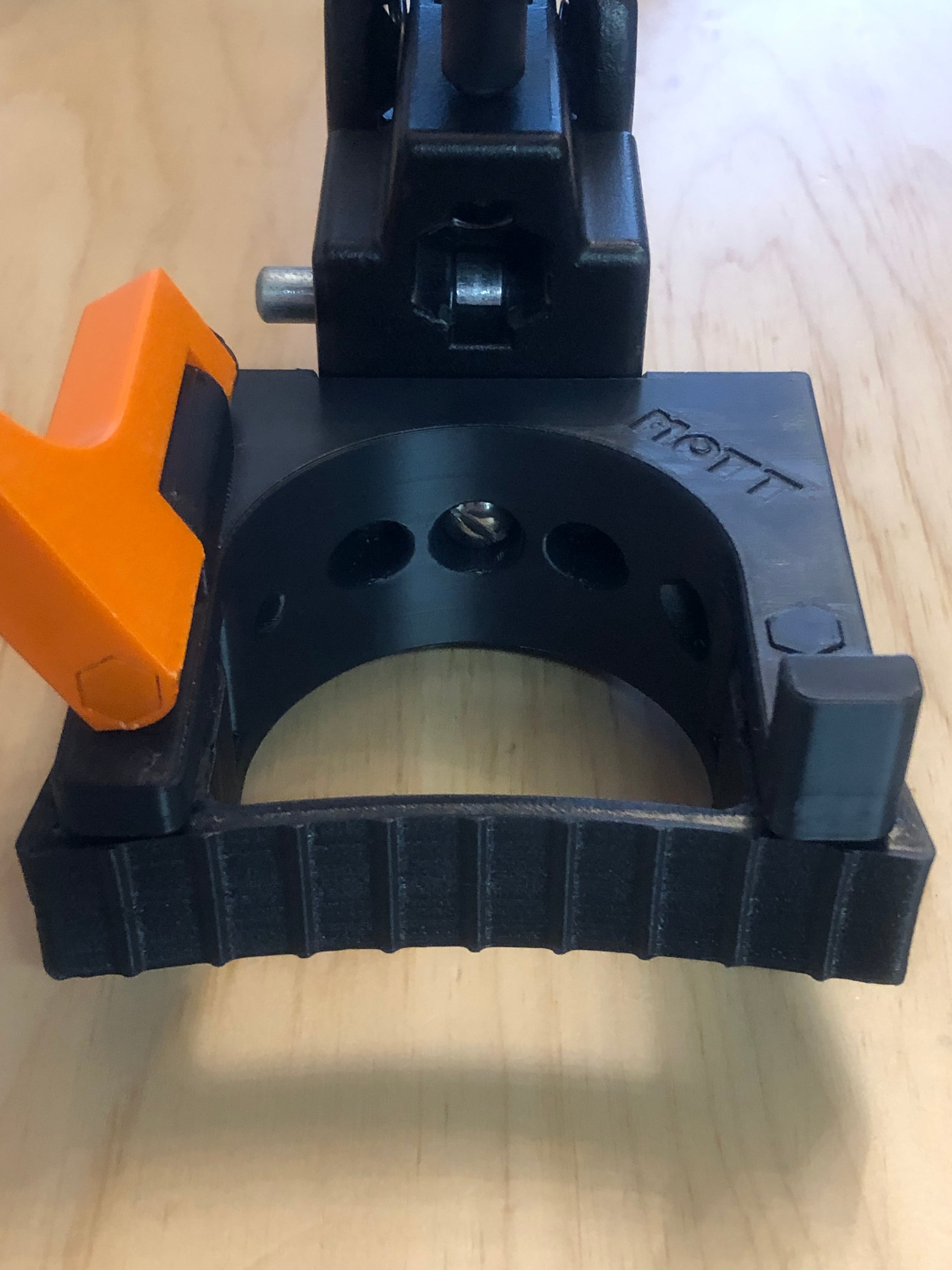

The whole material uses ABS Carbon Fiber, and the grip uses high -quality and durable TPE.

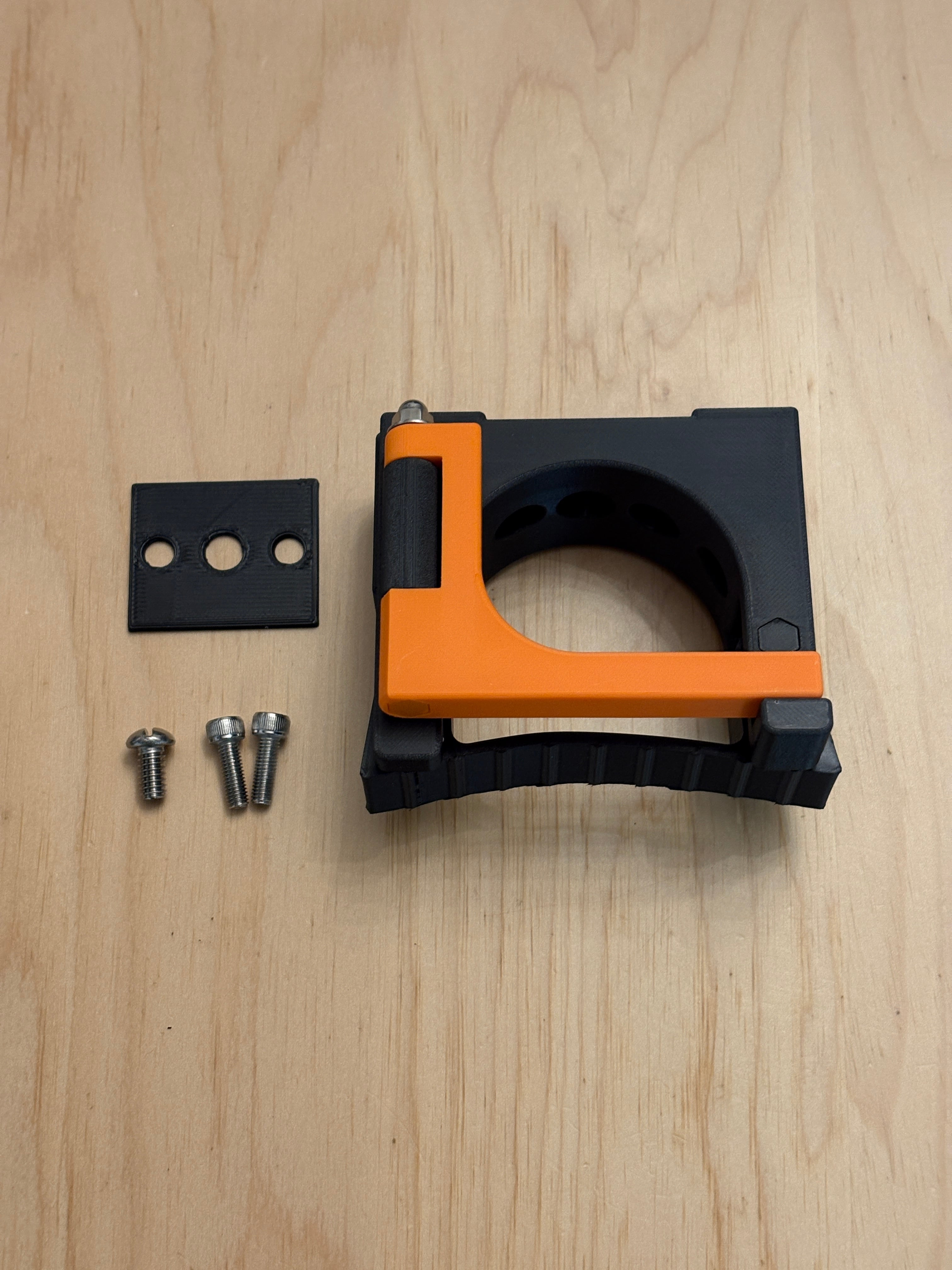

●Package contents (The first photo is the content)

＊ Super clamps are not included

1 - upper “grip” with black clamp and orange safety lock

　Please select one of the four grips below with the corresponding diameter.

①Approximately 28-32mm

②Approximately 32-36mm

1- rubber-like square spacer

1 - screw and bolt pack

(x1) stainless steel 1/4-20 screws,

(x2) stainless steel M5-15mm bolts
