Boom & Umbrella Dock for Super Clamps （BUD-1)

● Precautions before purchasing

This product is made of 3D -printed resin, not metal. If you are expecting a metal -like strength, please refrain from purchasing.

3D -printed ones have laminated marks and burrs, and may cause thin scratches in the manufacturing process. Normally, 3D -printed products are less likely to be cleaner like a resin product made in the mold. The strength of the product has been confirmed in normal use, but do not use or make a mistake in the extreme burden.

Only those who understand the 3D -printed products or handmade products as described above should order.



● Product explanation

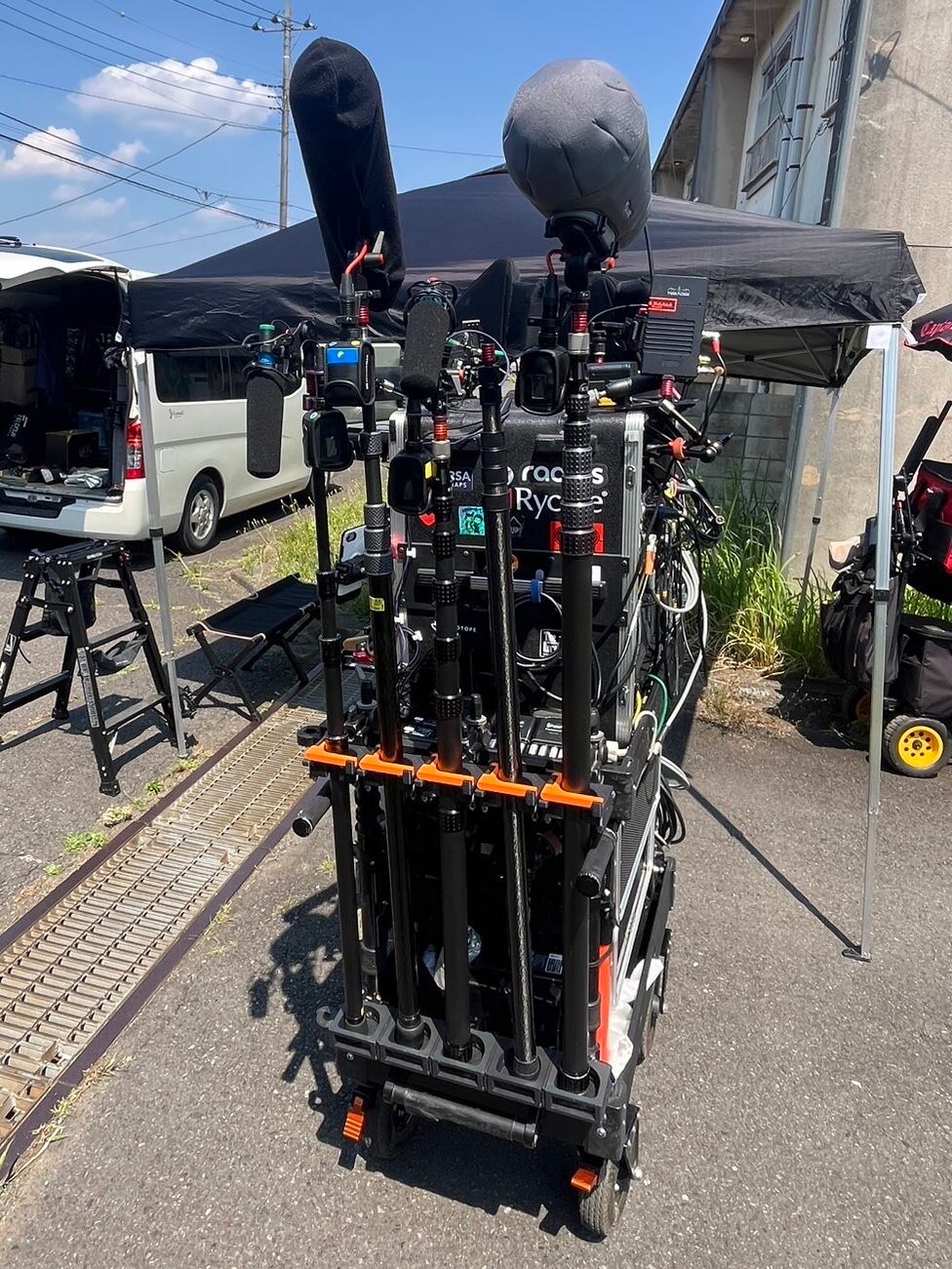

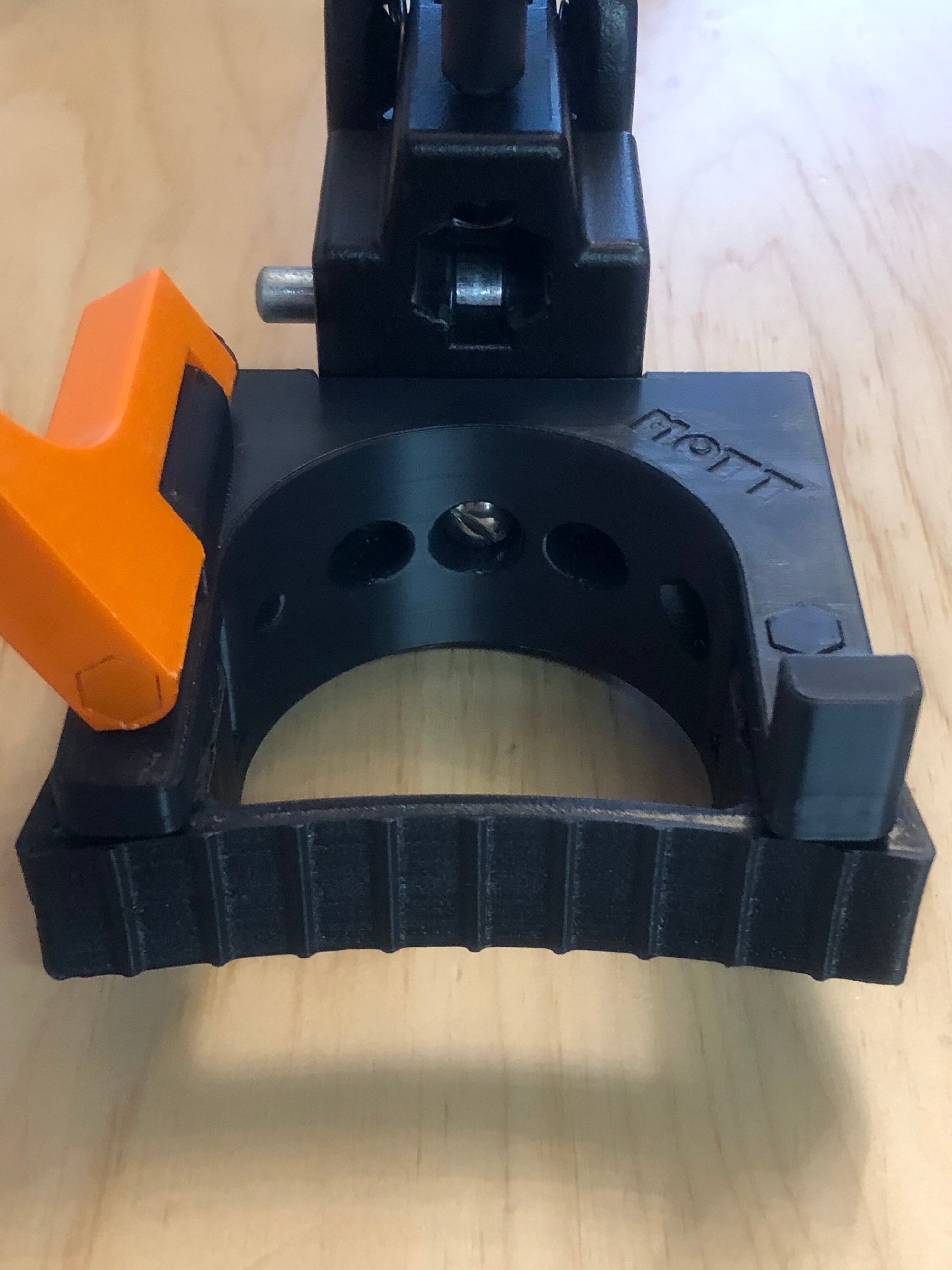

It is a boom & umbrella dock that can be fixed with a super clamp. It is possible to connect to the side and install booms side by side.

https://www.instagram.com/reel/C94xch6PZIf/?igsh=MXNqNmNvN2J4eGdnMQ==

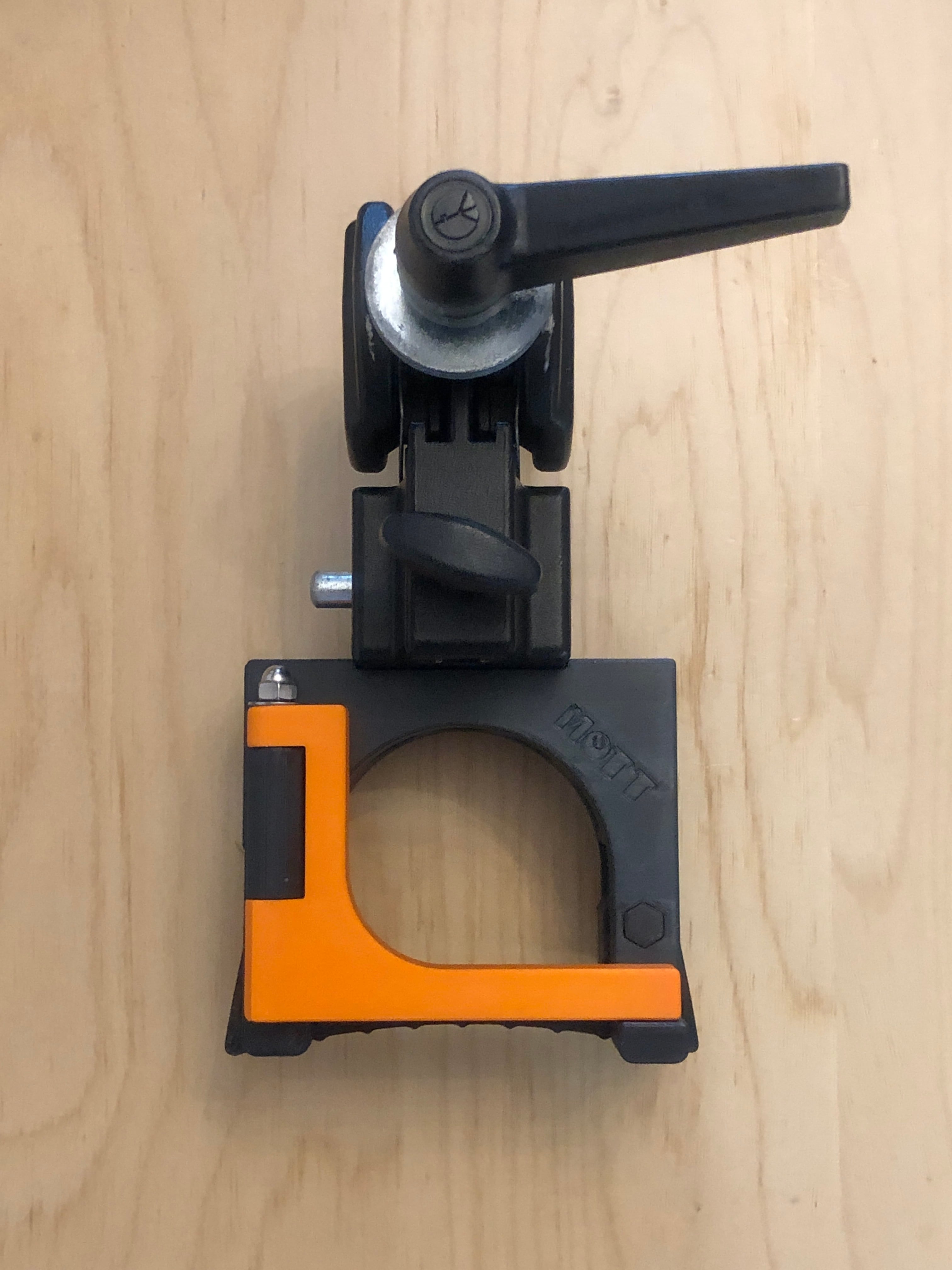

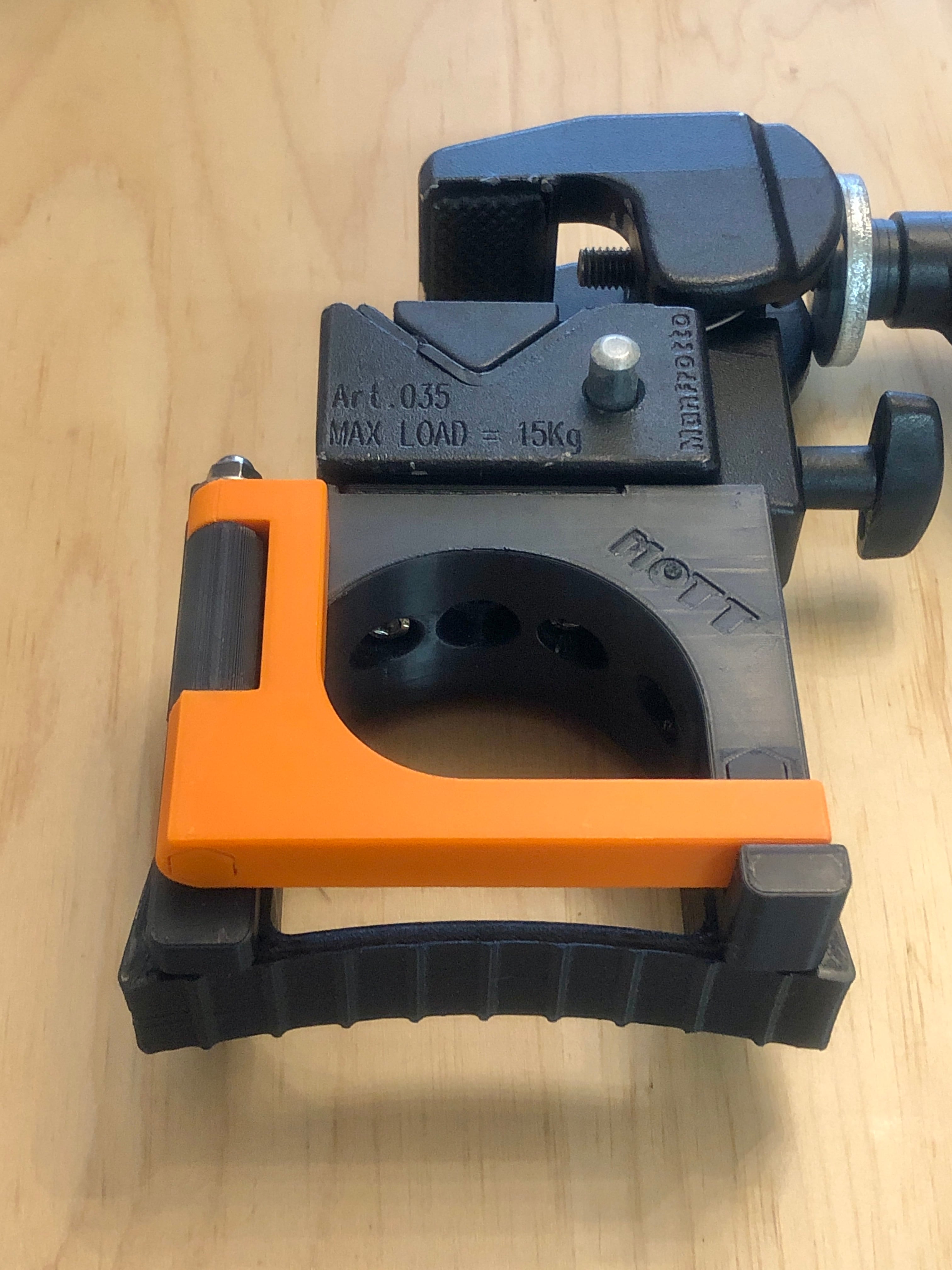

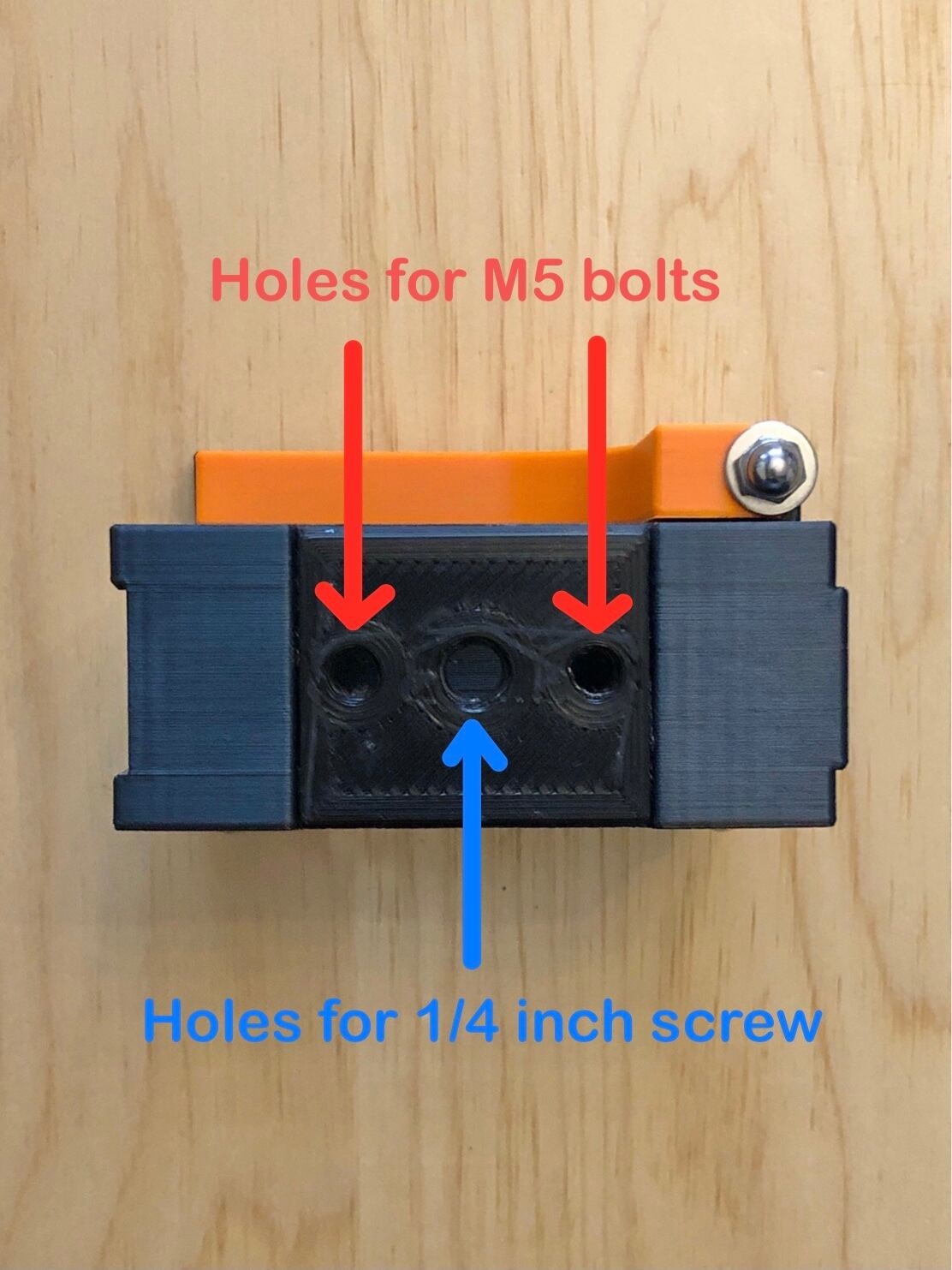

Super clamps can be fixed not only in the horizontal but also vertically. If you fix it horizontal, you can fix it with two M5 bolts and one 1/4 inch screw. If you fix it vertically, remove the non -slip rubber like sheet and you can fix it with one 1/4 inch screw.

https://www.instagram.com/reel/C94U2EevdWI/?igsh=MWQ0bG9jNTlidHpzYw==

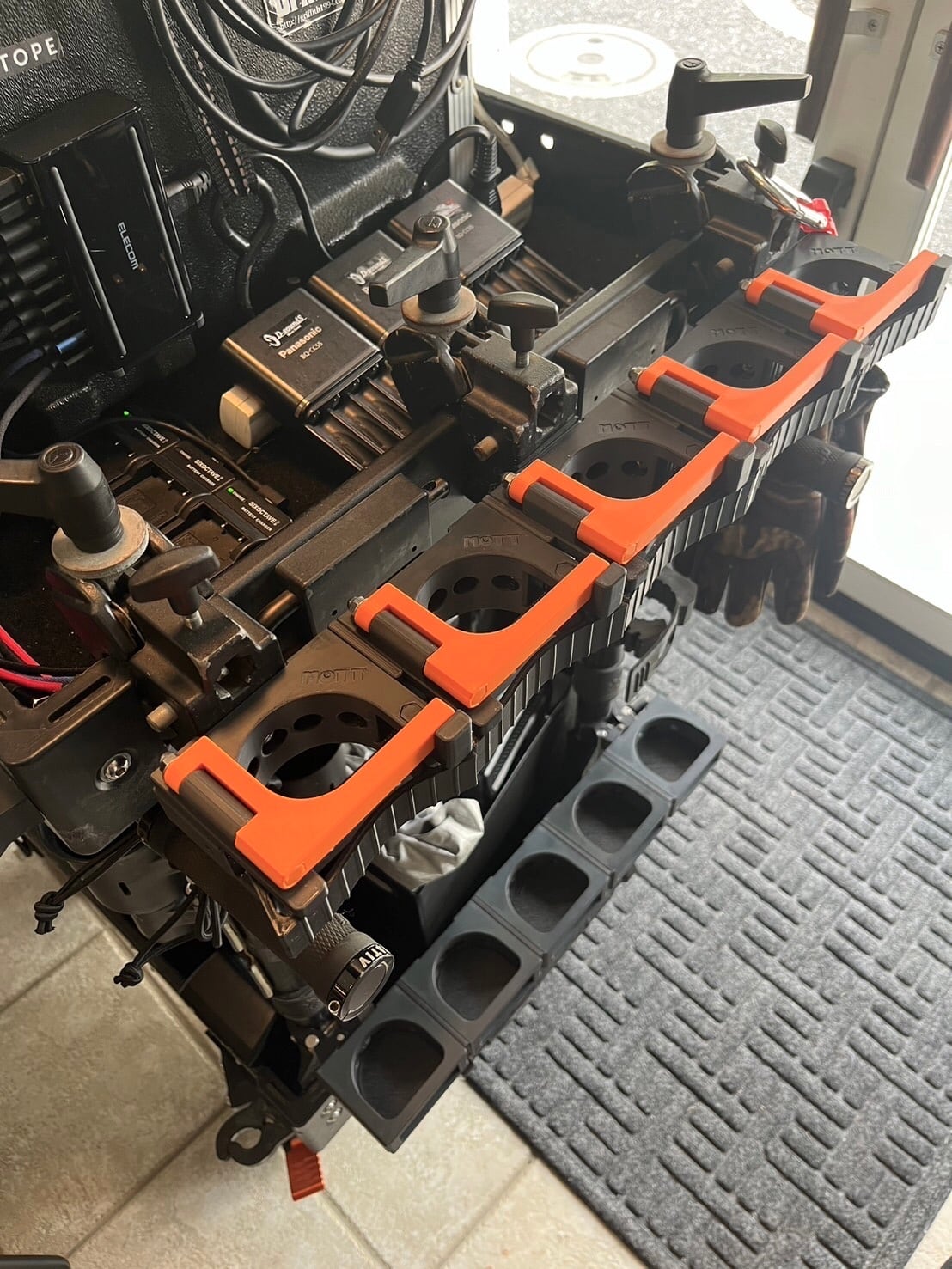

In addition, it is possible to connect to the side with one M5 bolt, and by inserting a spacer, it is possible to prevent the next grip from interfering.

The lower base part has a structure that does not accumulate water such as rain, making it easy to clean. There is also an optional non -slip sheet. Glue the non -slip sheet with your favorite double -sided tape or adhesive.

The whole material uses weather resistance and durable ASA, and the grip uses high -quality and durable TPE.



●Package contents (The first photo is the content)

＊ Super clamps are not included

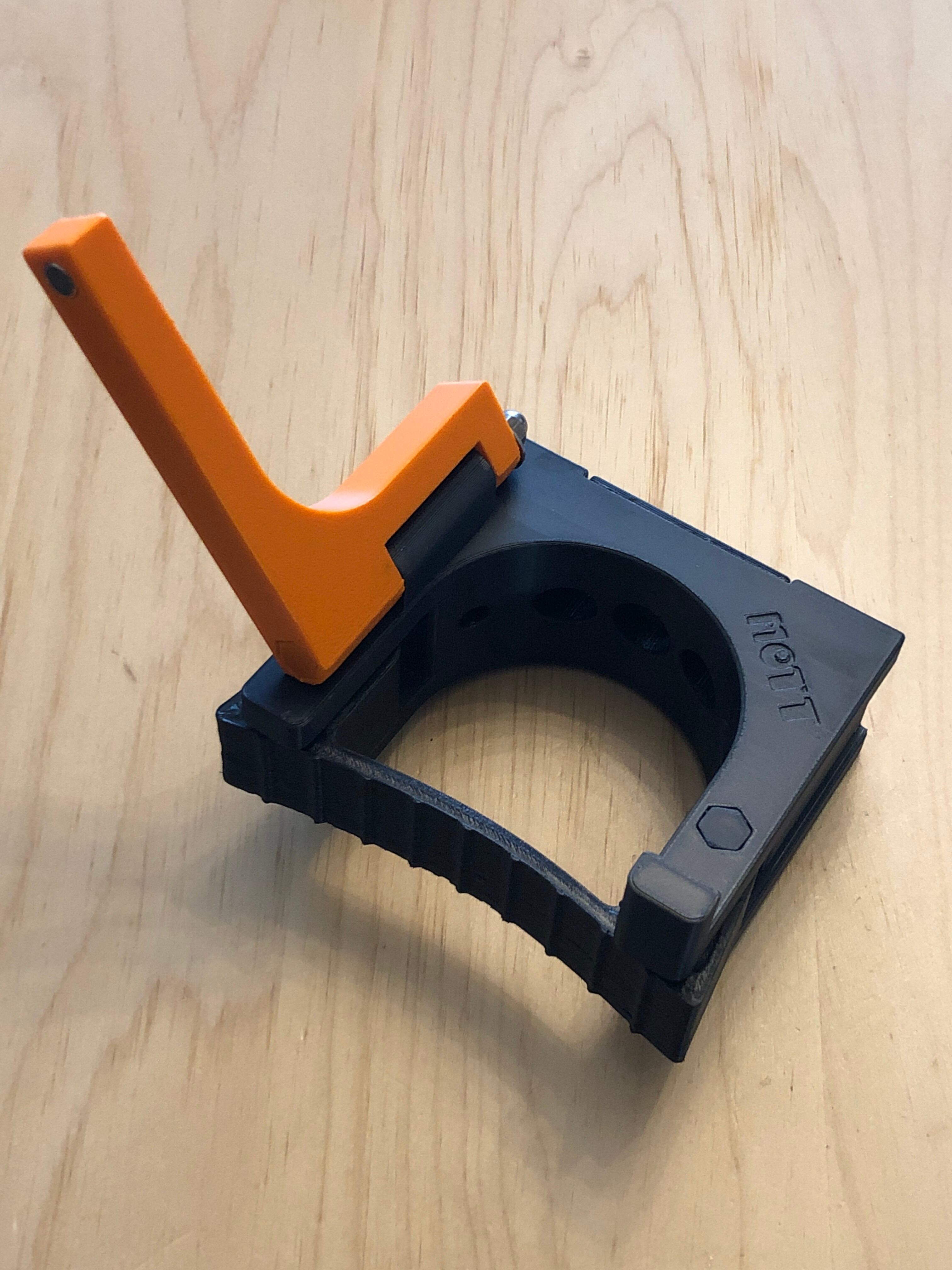

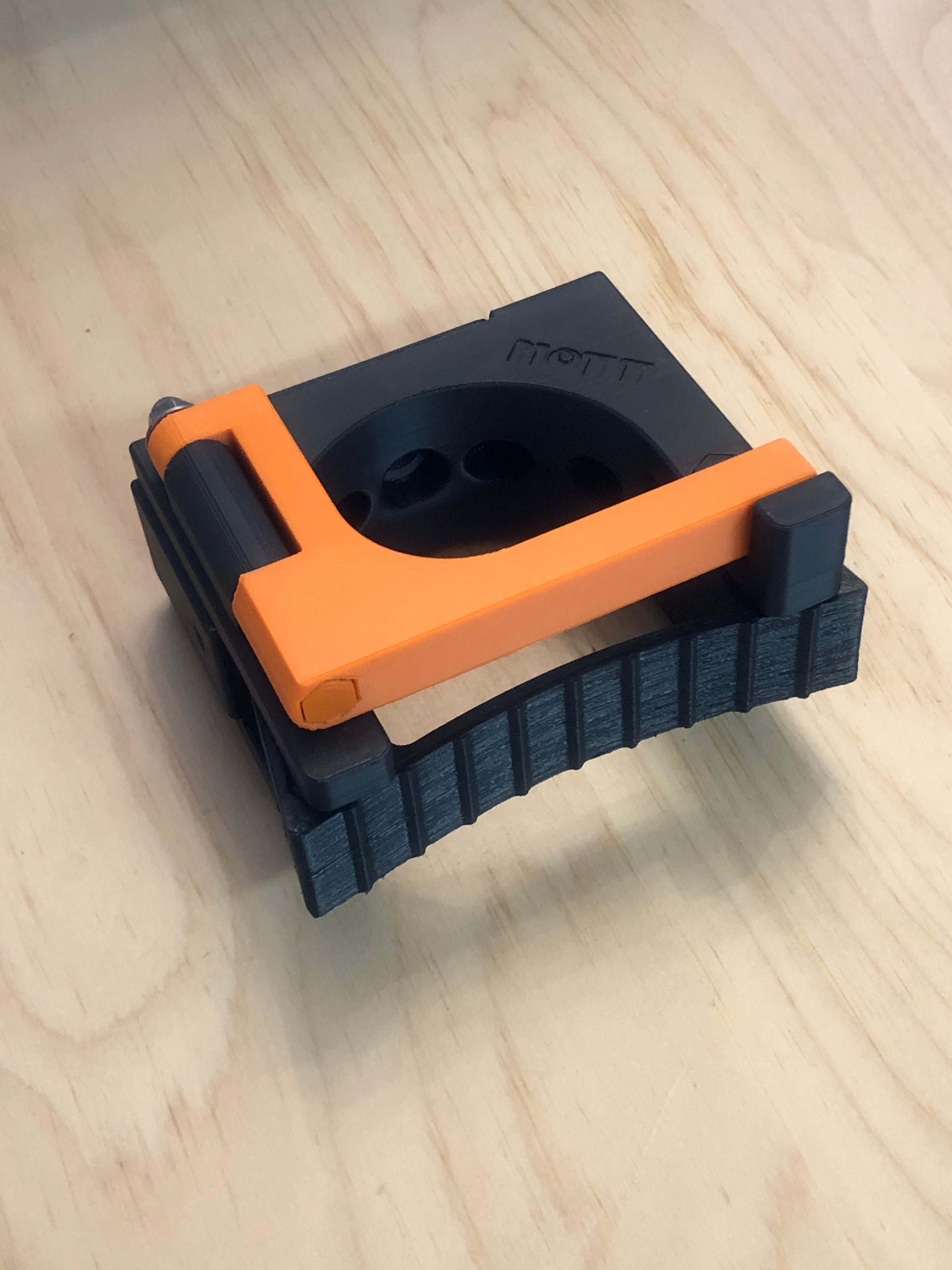

1 - upper “grip” with black clamp and orange safety lock

　Please select one of the four grips below with the corresponding diameter.

①Approximately 22-25mm

②Approximately 28-32mm

③Approximately 32-36mm

④Approximately 38-42mm

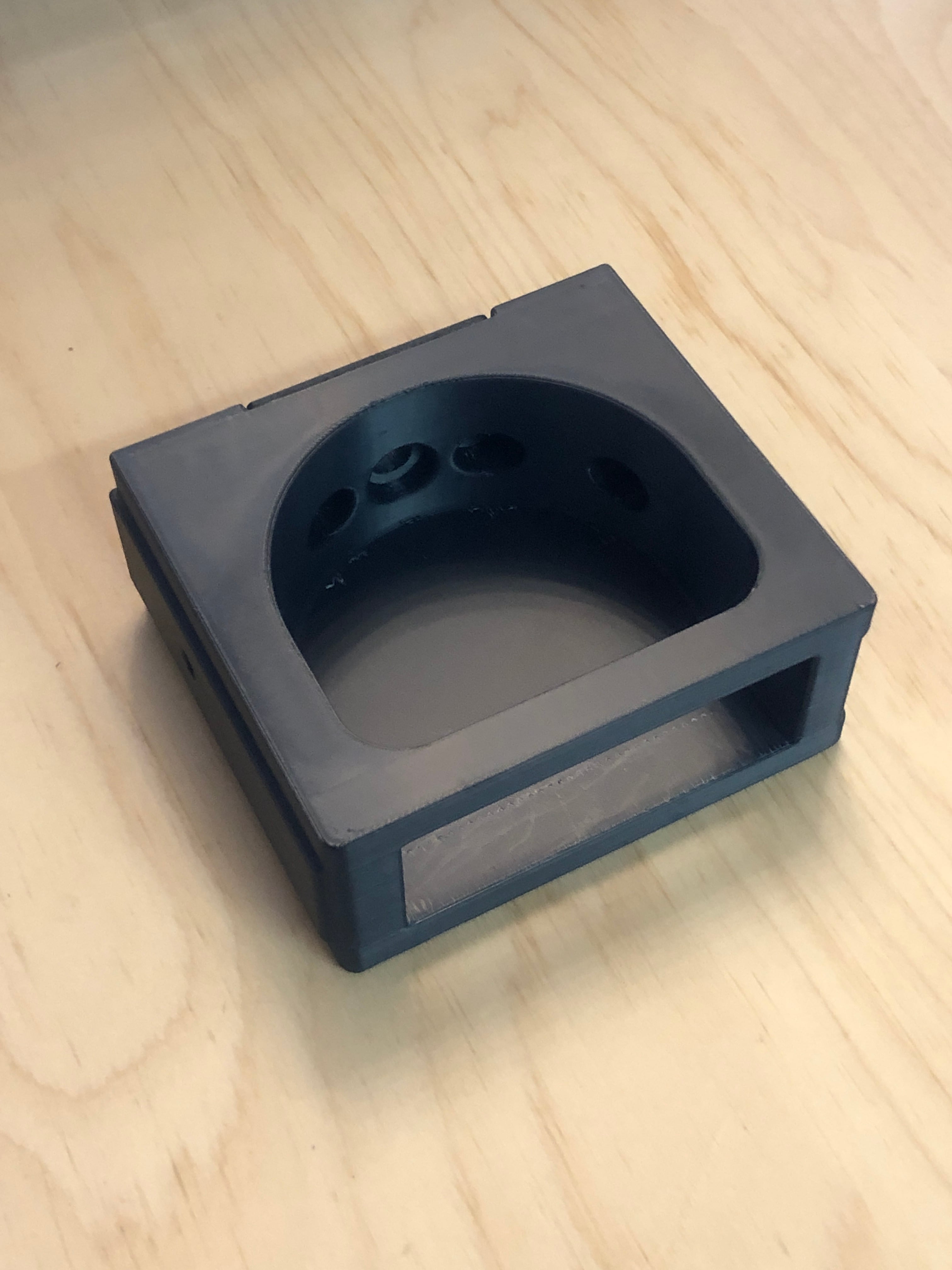

1 - lower “base”

1 - screw and bolt pack

(x2) stainless steel 1/4-20 screws,

(x4) stainless steel M5-15mm bolts
