Umbrella & [Avenger] C-Stand Dock for Magliner（UCD-MG)

● Precautions before purchasing

This product is made of 3D -printed resin, not metal. If you are expecting a metal -like strength, please refrain from purchasing.

3D -printed ones have laminated marks and burrs, and may cause thin scratches in the manufacturing process. Normally, 3D -printed products are less likely to be cleaner like a resin product made in the mold. The strength of the product has been confirmed in normal use, but do not use or make a mistake in the extreme burden.

Only those who understand the 3D -printed products or handmade products as described above should order.



● Product explanation

This is a dock for Magliner that can hold an umbrella and a C-stand. Also, it can hold a boom instead of an umbrella.

https://www.instagram.com/reel/DBV6WFNPRF-/?igsh=OTRvNTBmb2FndzBz

You can also take it apart, attach the super clamps and use them as an umbrella dock or a C-stand dock.

Designed it based on the Avenger C-stand that is mainstream in Japan. The base of the current design is designed so that not only a C-stand, but also a boom or umbrella can be placed on the bottom. If you use the Turtle Base C-stand, which has a protrusion at the bottom, you may hit the bottom, so a base with a larger hole is required. The type is coming soon.

[upper “grip” ]
28-32mm grip for Umbrella and Boom
32-26mm grip for C-stand
Please check the diameter of your Umbrella, Boom and C-stand before purchasing.
If your umbrella is thinner than 28mm you will need to purchase a 22-25mm grip separately.

[lower “base”]
base for Umbrella and Boom
base for C-stand

It is recommended that the base of the bottom should be tightened with three screws(one 1/4 inch screw and two M5 bolts). Do not fix it with only one or two screws and bolts. Because it is made of resin, if you repeat the removal and removal, it may be shaved little by little. Let's carefully attach the C-stand to the base:)

The whole material uses weather resistance and durable ASA, and the grip uses high-quality and durable TPE.

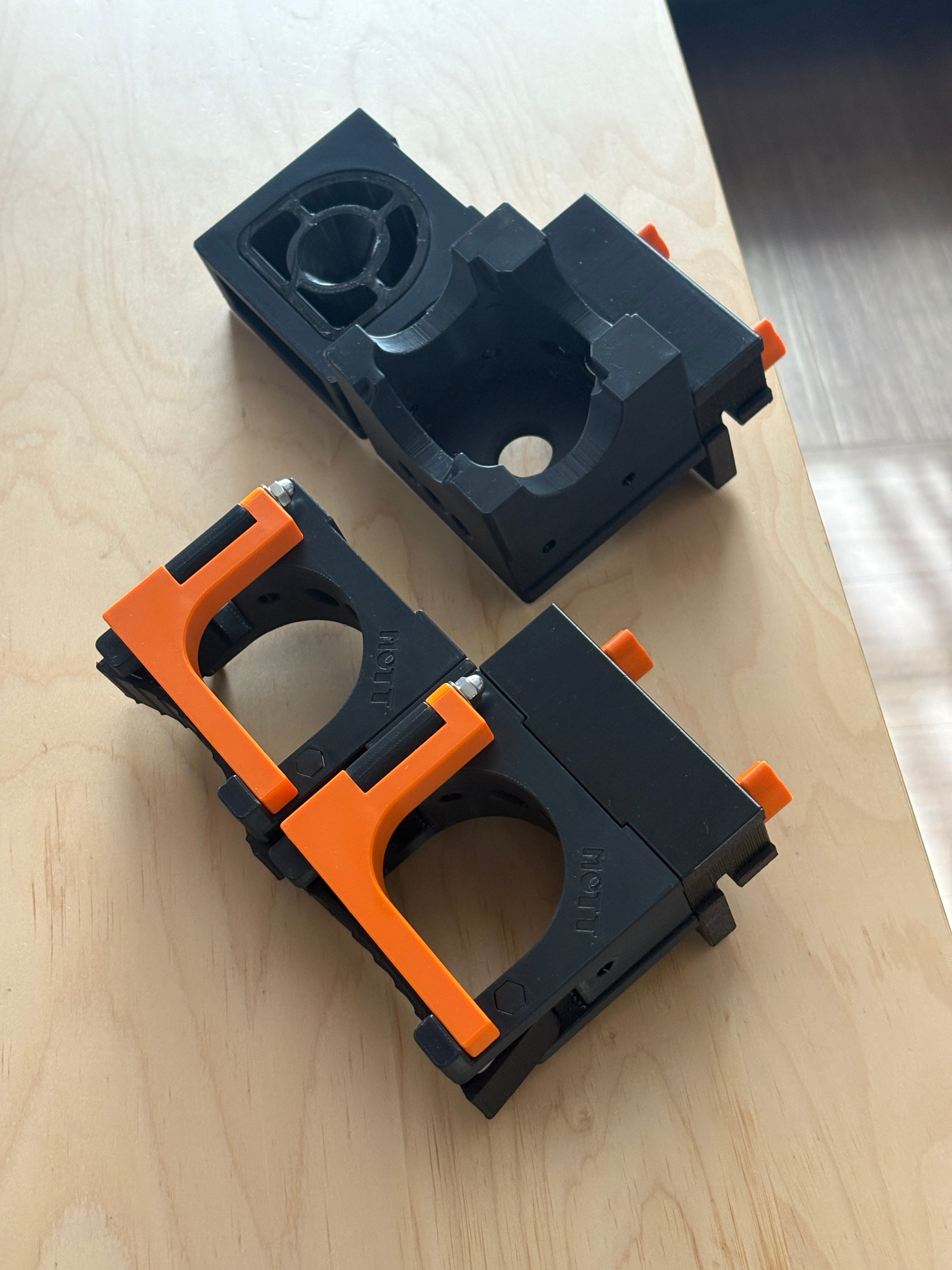

●Package contents (The first photo is the content)

＊ Super clamps are not included

1 - BUD-1
This grip can hold stands with a diameter of approximately 28-32mm.

1 - CSD-1
This grip can hold stands with a diameter of approximately 32-36mm.

2 - screw and bolt pack
(x2) stainless steel 1/4-20 screws
(x4) stainless steel M5-15mm bolts

1 - Umbrella holder for lower “base”  (TPU)

4 - Rubber-like spacer with 3 holes

1-Spacer pack for CSD-1
(x1) 5mm spacer for upper grip
(x1) 5mm spacer for bottom
(x3) stainless steel M5-25mm bolts

1-Magliner adapter for CSD-1 & BUD-1
(x2) Magliner adapter
(x4) M5 bolts
(x1) 1/4inch bolt for bottom
